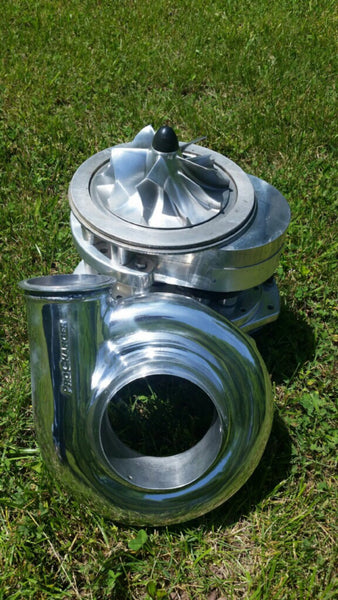

This offering combines a completely fresh ProCharger F-3R-136 supercharger head unit with a new Supercharger Store Gear Drive, specifically engineered for Big Block Chevrolet (BBC) engines. The housing boasts a FRESH Polished Finish, ensuring both peak performance and a stunning aesthetic. Both components are guaranteed to work and function properly, providing a reliable and powerful upgrade for your high-performance application.
ProCharger F-3R-136: The Pinnacle of Centrifugal Supercharging
The ProCharger F-3R-136 is a top-tier centrifugal supercharger, renowned for its ability to deliver ultra-high horsepower with exceptional reliability and consistency.
Key Specifications and Features of the F-3R-136:
- Maximum Supercharged Horsepower: Capable of supporting 3,000+ HP
- Maximum Airflow: Provides an impressive 4,000 CFM (Cubic Feet per Minute).
- Maximum Boost Pressure: Delivers up to 50 PSI (Pounds per Square Inch) of boost.
- Max Impeller RPM: The impeller can spin at a staggering 72,000 RPM.
- Internal Step-up Ratio: Features an internal step-up ratio of 5.63:1. This ratio dictates how much faster the impeller spins compared to the input shaft.
- Self-Contained Oiling System: The F-3R-136 utilizes ProCharger's proprietary synthetic oil blend and a self-contained oiling design, eliminating the need for external oil lines, pumps, or drains. This simplifies installation and maintenance.

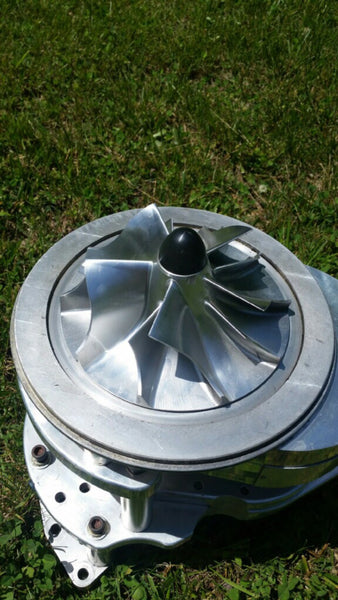

- Durable Construction: Built with high-strength, aircraft-grade billet aluminum, including precision-ground 9310 steel shafts and gears, and a CNC-machined 7075 aluminum billet impeller.

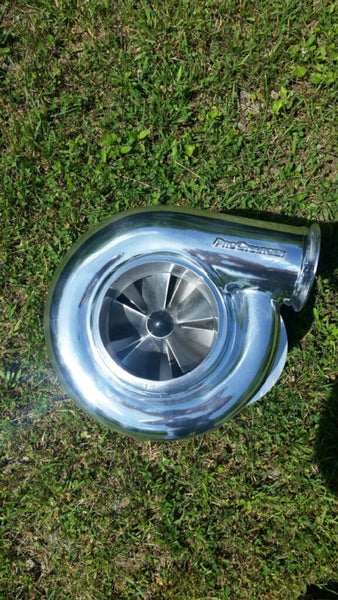

- Volute Diameter: Features a 12-inch volute.
- Inlet and Outlet Diameters: The inlet hose diameter is 5.75 inches, and the outlet hose diameter is 4 inches.
- Finish: This specific unit comes with a FRESH Polished Finish, offering a premium aesthetic.
Supercharger Store Gear Drive: Optimized for Extreme Applications

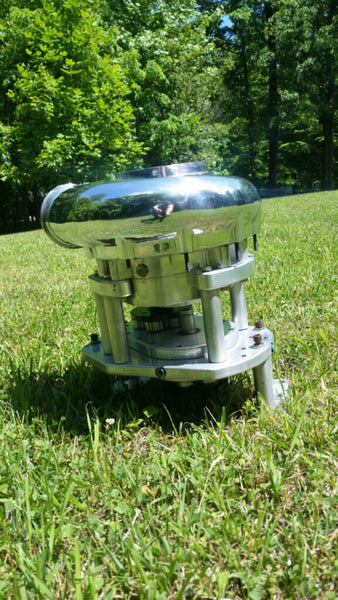

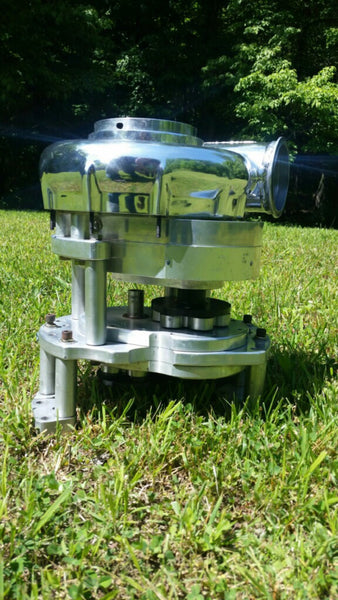

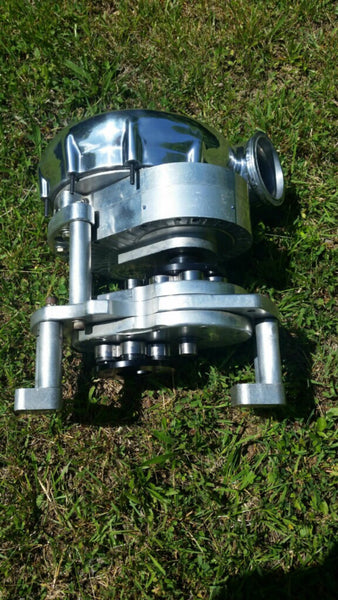

This package includes a new Supercharger Store Gear Drive, specifically designed to complement the F-3R-136 ProCharger for Big Block Chevrolet (BBC) engines. Gear drives, such as the CrankDrive offered by ProCharger, are ideal for extreme power levels and offer maximum efficiency.
Key Features of the Included Gear Drive:
- Engine Compatibility: Engineered for Big Block Chevrolet (BBC) engines.
- Horsepower Support: Capable of supporting over 3,000 horsepower, aligning perfectly with the F-3R-136's capabilities.
-
Upgraded Coupler: Includes an upgraded billet 12-strand coupler, a significant enhancement over the standard 8-strand version.
- Ready to Bolt On: This combination is READY TO BOLT ON, simplifying the installation process for immediate performance gains.
Don't miss this opportunity to unleash the full potential of your Big Block Chevrolet engine!
